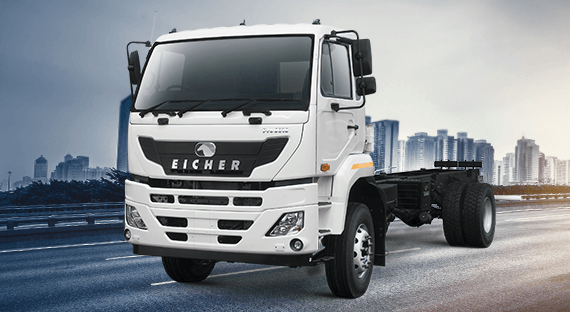

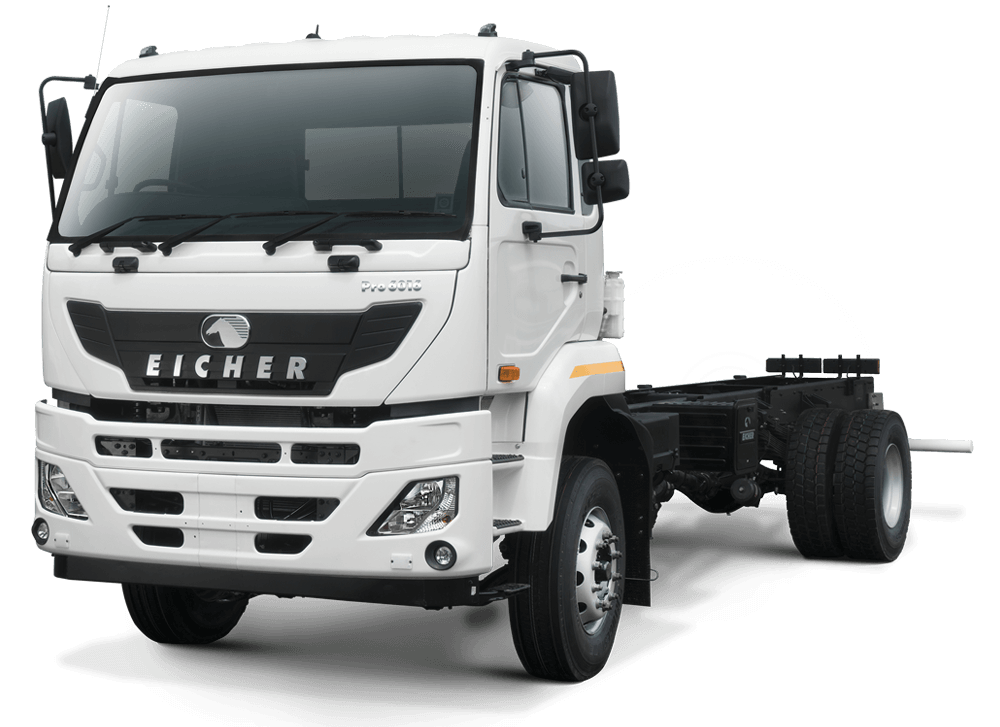

Eicher Pro 6016 design and development provides unparalleled business advantage by maximizing efficiency right through the life-cycle of the vehicle and minimizing the cost of operations. Eicher Pro 6016 is a highly reliable 16 ton GVW truck powered with next generation 5.1 Litre VEDX5 CRS technology engine designed in collaboration with Volvo group. The 4 cylinder, 4 valve has high combustion efficiency and low parasitic losses delivering 210 HP and 825 NM torque, resulting in class leading fuel efficiency.
PARAMETERS | Value | |
---|---|---|
Model | Pro 6016 | |
Vehicle Weight (Kgs) | GVM | 16000 |
FAW (laden) | 7100 | |
RAW (laden) | 9000 | |
Tier Mass - w/o load body | 5930 | |

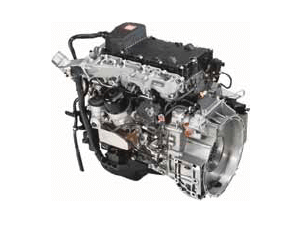

Engine | Model | VEDX5, 4 Cylinder 4 Valve per cylinder, turbo charged, intercooled diesel, common rail |
Capacity | 5100cc | |
Max Power | 210 Hp @ 2200 rpm | |
Max Torque | 825 Nm @ 1200 - 1600 rpm | |
Emission | Euro III | |
Transmission | Gear Box | ET70S6 (6 Forward 1 Reverse) |
Gear Shift Linkage | Single Rod GSL | |
Clutch | Clutch | 395 mm Plate Dia, spring loaded push type |
Rear Axle | Rear Axle Ratio | 5.286 |
Chassis Frame | Type | Ladder type joggle frame |
Section | 285 X 76 X 7 | |
Steering System | Type | Power steering |
TCD (M) | 18 | |
Suspension | Front Suspension | Semi elliptical leaf springs with double acting telescopic shock absarber & Anti-roll bar |
Rear Suspension | Semi elliptical laminated leaf springs | |
Wheel & Tyres | Tyres Size | Tubeless radial 295/80R22.5-16PR |
Whell Rim Size | 8.25X22.5 | |

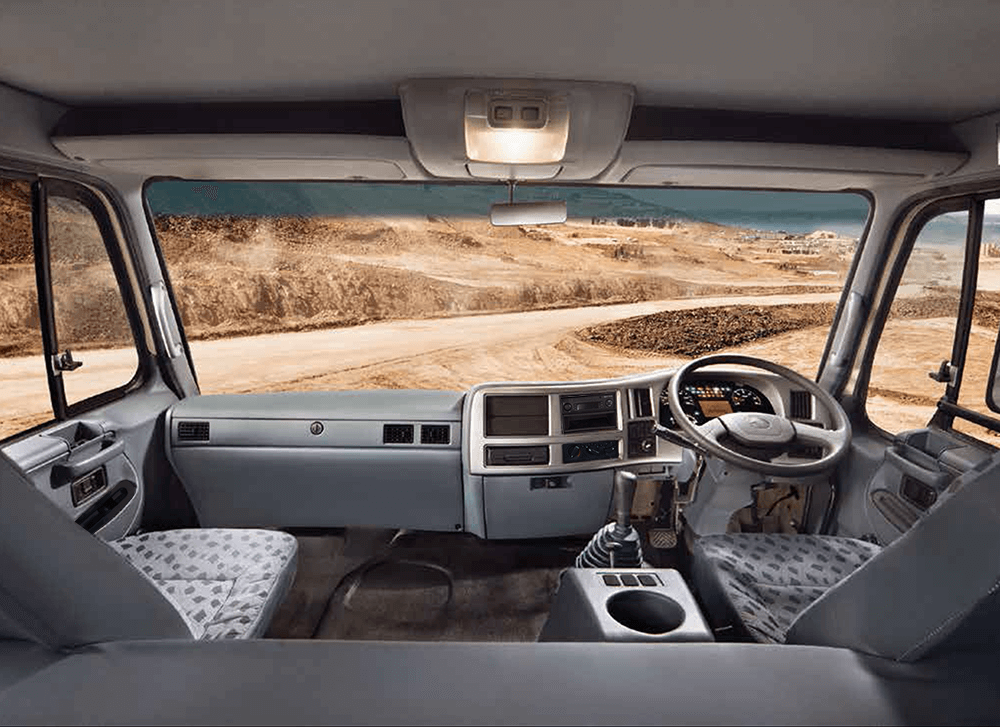

Cabin | Cabin | 2.3 m Day cab (Premium) |
Model | New Pro 6016 HVAC CAB with IDIS | |
Brakes | Brake type | Dual Circuit, Full Air |
Parking brake type | Pneumatic Control, hand operated | |
ABS | Standard | |
Electrical | Battery | 24.V.150AH |
Fuel Tank | Size | 220 litres |
Performance | Max Speed (kmph) | 110 |
Gradeability | 34.5% | |
Vehicle Dimensions (mm) | Wheel Base | 5340 |
FOH | 1423 | |
ROH | 2824 | |
Cabin Width | 2300 | |
Ground Clearance | 230 |
