Eicher Pro 6025T

OVERVIEW

  • INTRODUCTION
  • BENEFITS
  • TECHNOLOGY
Eicher Pro 6025T

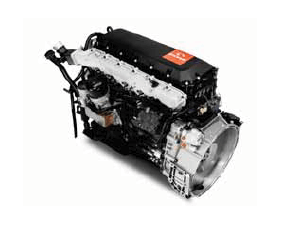

The Eicher Pro 6025T is a 25 ton GVM construction tipper powered by the next generation 7.7 litre VEDX8 CRS technology engine designed in collaboration with Volvo Group. The 6 Cylinder, 4 Valve engine has high combustion efficiency and low parasitic losses that delivers 250 HP and 950 NM torque, resulting in the class leading fuel efficiency.

SPECIFICATIONS

PARAMETERS Value
GVM 25700
FAW (laden) 7700
RAW (laden) 18000
Tier Mass - w/o load body 8050
Model VEDX8, 6 Cylinder 4 Valve per
cylinder, turbo charged,
intercooled diesel, common rail
Capacity 7700 cc
Max Power 250 Hp @ 2200 rpm
Max Torque 950 Nm @ 1100-1850 rpm
Emission Euro III
Gear Box ZF 1110TD
(9 Forward 1 Reverse)
Gear Shift Linkage Single Rod GSL
Clutch 430 mm Plate Dia, spring loaded
pull type with clutch booster
Rear Axle Ratio 5.286
Type Ladder type joggle frame
Section 285 X 76 X 7
Type Power steering
TCD (M) 14.5
Front Suspension Parabolic leaf springs with
hydraulic type double acting
telescopic front shock absorber
Rear Suspension Bogie suspension
Tyre Size Tubeless radial 315/80R22.5-16PR
Wheel Rim size 9X22.5
Model New Pro 6025T HVAC
CAB with IDIS
Brake type Dual Circuit, Full Air
Parking brake type Pneumatic Control, hand operated
(Inbuilt with Rear Spring Brake Actuator)
ABS Standard
Battery 24V,150AH
Size 220 litres
Max Speed (kmph) 86
Gradeability 49%
Wheel Base 4000
FOH 1420
ROH 815
Cabin Width 2300
Ground Clearance 256
