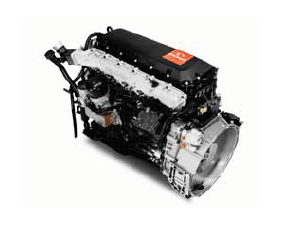

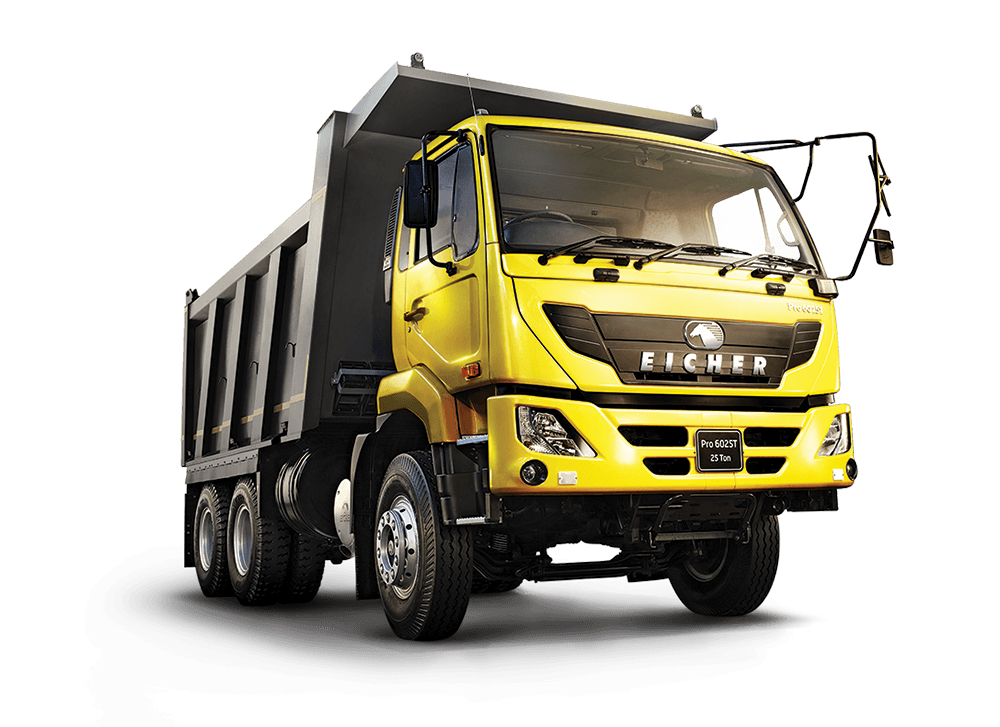

The Eicher Pro 6025T is a 25 ton GVM construction tipper powered by the next generation 7.7 litre VEDX8 CRS technology engine designed in collaboration with Volvo Group. The 6 Cylinder, 4 Valve engine has high combustion efficiency and low parasitic losses that delivers 250 HP and 950 NM torque, resulting in the class leading fuel efficiency.
PARAMETERS | Value |
---|---|
GVM | 25700 |
FAW (laden) | 7700 |
RAW (laden) | 18000 |
Tier Mass - w/o load body | 8050 |
Model | VEDX8, 6 Cylinder 4 Valve per cylinder, turbo charged, intercooled diesel, common rail |
Capacity | 7700 cc |
Max Power | 250 Hp @ 2200 rpm |
Max Torque | 950 Nm @ 1100-1850 rpm |
Emission | Euro III |
Gear Box | ZF 1110TD (9 Forward 1 Reverse) |
Gear Shift Linkage | Single Rod GSL |
Clutch | 430 mm Plate Dia, spring loaded pull type with clutch booster |
Rear Axle Ratio | 5.286 |
Type | Ladder type joggle frame |
Section | 285 X 76 X 7 |
Type | Power steering |
TCD (M) | 14.5 |
Front Suspension | Parabolic leaf springs with hydraulic type double acting telescopic front shock absorber |
Rear Suspension | Bogie suspension |
Tyre Size | Tubeless radial 315/80R22.5-16PR |
Wheel Rim size | 9X22.5 |

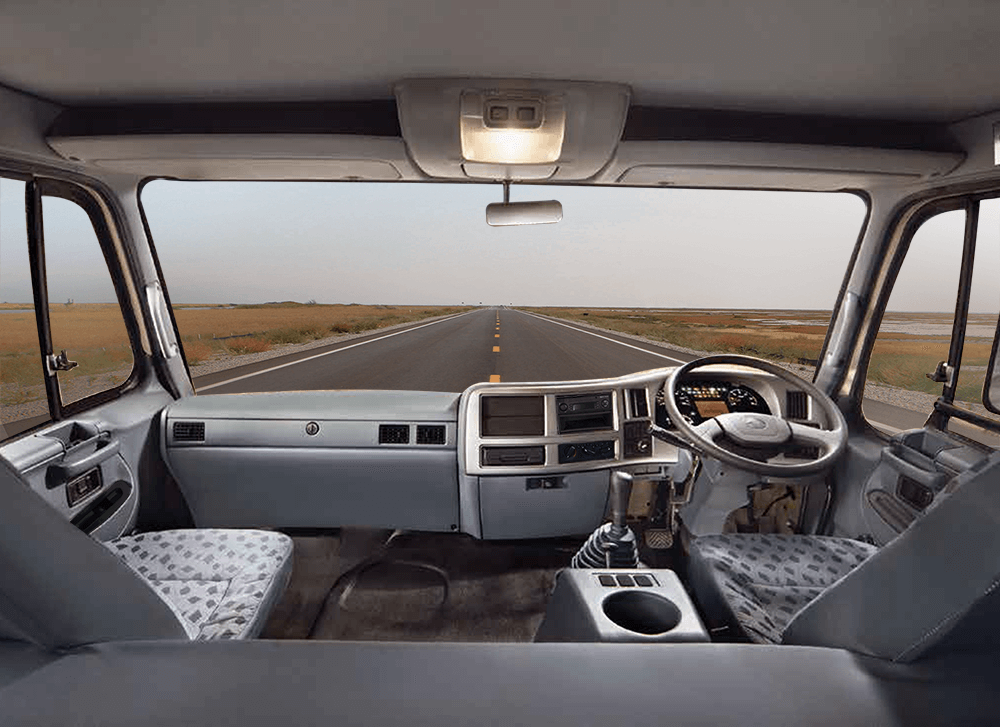

Model | New Pro 6025T HVAC CAB with IDIS |
Brake type | Dual Circuit, Full Air |
Parking brake type | Pneumatic Control, hand operated (Inbuilt with Rear Spring Brake Actuator) |
ABS | Standard |
Battery | 24V,150AH |
Size | 220 litres |
Max Speed (kmph) | 86 |
Gradeability | 49% |
Wheel Base | 4000 |
FOH | 1420 |
ROH | 815 |
Cabin Width | 2300 |
Ground Clearance | 256 |
