Pro 6016T

OVERVIEW

  • INTRODUCTION
  • BENEFITS
  • TECHNOLOGY
  • APPLICATIONS

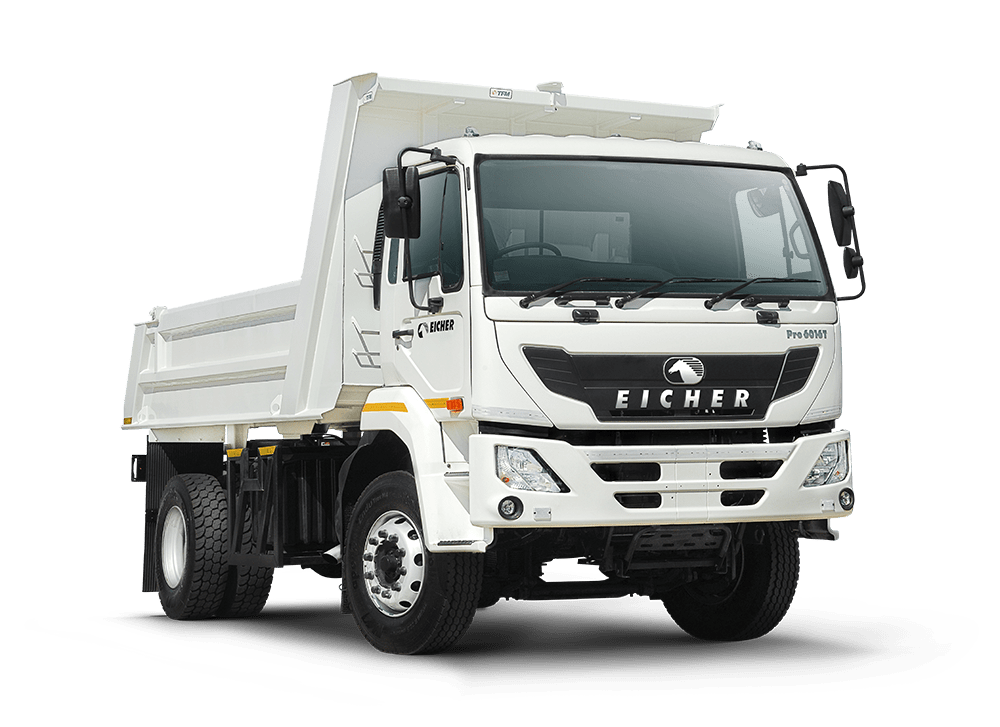

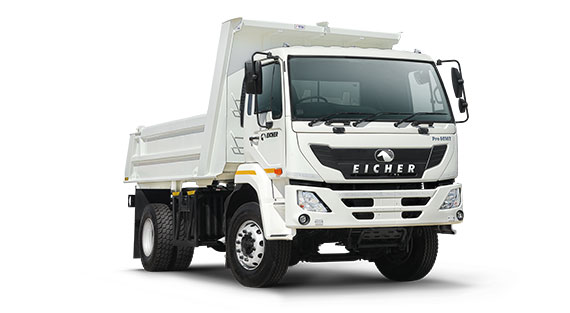

The new Eicher 6016T is a 16 tonne GVM Tipper. With power of 210 HP and torque output of 825 Nm, the Eicher Pro 6016T is built on the philosophy to have been BORN EFFICIENT

SPECIFICATIONS

SPECIFICATIONS Pro 6016T
GVM(Kg) 16000
Wheelbase(mm) 3900
Front overhang (mm) 1423
Rear Overhang (mm) 1060
Engine Type VEDX5, 4 cyl, 4 vavle, turbocharged, intercooled diesel, commom rail
Max Power 210 @ 2200 rpm
Max Torque 825 @ 1200-1600 rpm
Clutch Type  Spring loaded push type
Clutch Diameter (mm) 395
Gearbox  ET70S6 (6 forward, 1 reverse)
Final Drive Ratio  5.286
Chassis Type Ladder type joggle frame (285x76x7)
Suspension   Semi elliptical leaf spring
Shock Absorbers Double acting telescopic shock absorbers
Steering  Power steering
Body Size/Type (cum)  6
Gradiability(%)  37
Max Speed (km/h)  110
Fuel Tank  220 ltrs
Electrical   2x12V-120 Ah
Tyre  Tubeless Radial 295/80R22.5-16PR
