Pro 6025T 280 HP

OVERVIEW

  • INTRODUCTION
  • BENEFITS
  • TECHNOLOGY
  • APPLICATIONS

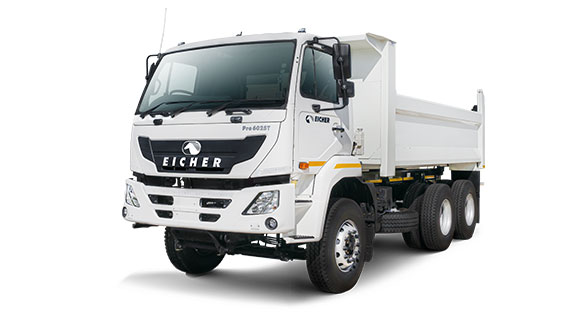

The new Eicher 6025T is the next-generation 25 ton GVM Tipper. With the increased power of 280 HP and higher torque output of 1050 Nm, the Eicher Pro 6025T is built on the philosophy to DO MORE and deliver superior performance, reliability, higher productivity and greater revenues

SPECIFICATIONS

SPECIFICATIONS Eicher Pro 6025T
GVM(Kg) 25500 kgs
Wheelbase(mm) 4000
Front overhang (mm) 1420
Rear Overhang (mm) 815
TCD (m)14.5

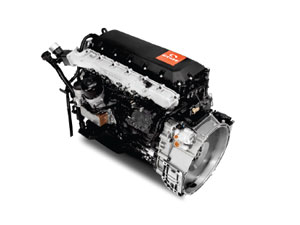

Engine Type VEDX8 6 cyl, 4 valve per cylinder, turbocharged, intercooled diesel, common rail
Max Power 280 hp @ 2200 rpm
Max Torque 1050 Nm @1100-1700 rpm
Clutch Type  Spring loaded pull type with clutch booster
Clutch Diameter 430 mm
Gearbox  ET140S9
Rear Axle  Meritor Tandem-Fully floating Banjo
Final Drive Ratio 5.29
Chassis Type Ladder type joggle frame, 285 x 76 x 7 mm
Suspension   Front: Parabolic leaf springs Rear: Bogie suspension
Shock Absorbers Hydraulic Double Acting Telescopic type at front only
Steering  Tilt and Telescopic hyadraulic power steering
Body Size  10 cum
Gradiability(%)  56.00%
Max Speed   88 kmph
Fuel Tank  220 ltrs
Electrical   2 x24 V, 120 Ah
Tyre  315/80R22.5- 16PR
